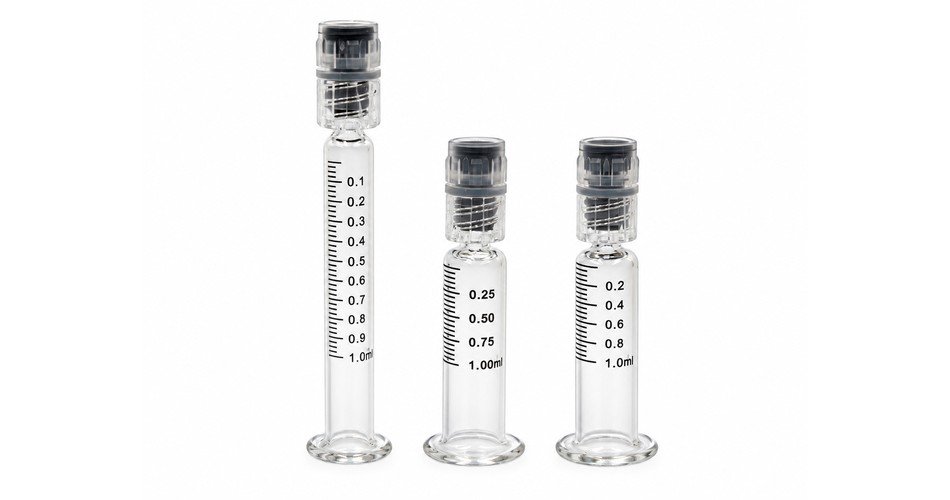

The two common 1 mL glass syringe barrel formats are standard (short and wide) and long (slim). Both have the same nominal capacity and basic configuration, but their barrel dimensions differ.
For cannabis extract packaging, the main differences are graduation spacing, cost, and suitability for thicker extracts. The standard version is the more widely used option, while the long version offers finer graduation markings.

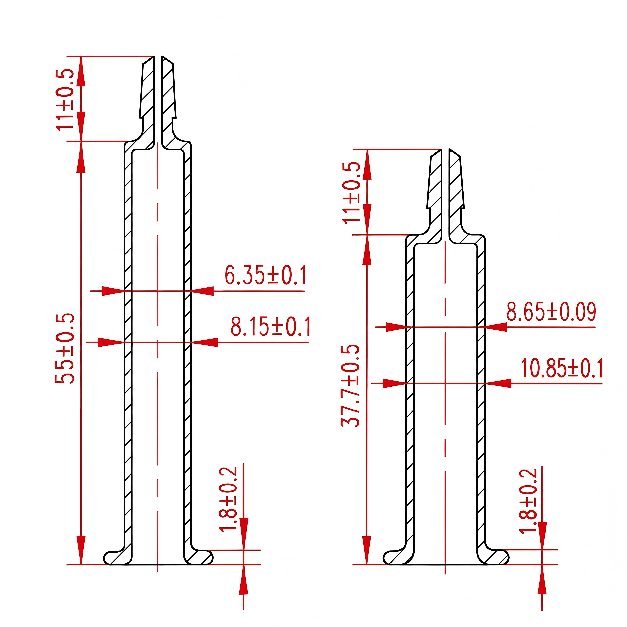

1. Barrel Dimensions and Graduation Markings
| Specification | Standard / Short | Long / Slim |
|---|---|---|
| Nominal capacity | 1 mL | 1 mL |
| Barrel shape | Short and wide | Long and slim |
| Barrel outer diameter | Ф10.85±0.1mm | Ф8.15±0.1mm |
| Barrel internal diameter | Ф8.65±0.09mm | Ф6.35±0.1mm |
| Glass barrel length (Luer cone) | 47.7±0.5mm | 65±0.5mm |
| Graduation interval | 0.05 mL | As fine as 0.025 mL |
The long barrel has a smaller internal cross-sectional area. To dispense the same volume, its plunger travels farther than the standard version’s. This allows smaller volume increments to be spaced farther apart along the barrel.
The long version can therefore accommodate graduation intervals as fine as 0.025 mL, compared with 0.05 mL on the standard version. These figures describe graduation spacing, not verified measurement accuracy.
2. Why Does the Long Glass Syringe Cost More?
The long 1 mL glass syringe generally costs more because its narrower barrel is more demanding to produce with current manufacturing processes.
Both versions share the same basic configuration, so the price difference primarily reflects barrel geometry and its production requirements—not a difference in overall product quality.
If the finer markings or slim profile are unnecessary, the standard version is the more economical choice.
3. Which Version Is Better for Thick Cannabis Extracts?
For thick distillate, RSO, FECO, and other extracts that flow poorly at room temperature, we recommend starting with the standard/short 1 mL syringe.
It is the most commonly used 1 mL barrel format in cannabis extract packaging and is generally our preferred starting option for these applications.
Barrel geometry affects the distance the plunger travels and the flow path inside the syringe. However, actual dispensing resistance also depends on the outlet, plunger system, temperature, and properties of the extract. The shorter, wider shape alone does not guarantee lower operating force in every setup.
Choose the long/slim version when its narrow profile or finer graduation spacing serves a specific requirement. For thicker extracts, the standard/short version is usually the more practical starting point.
To compare available configurations or request samples, see our 1 mL glass syringe product options. Noterd PFS can help review your extract characteristics and filling requirements before you order.
